AUTOCLAVE / STERILIZER
Horizontal Pressure Steam Sterilizer

0.25m³ / 0.36m³ / 0.6m³ / 0.8m³ / 1m³ / 1.2m³

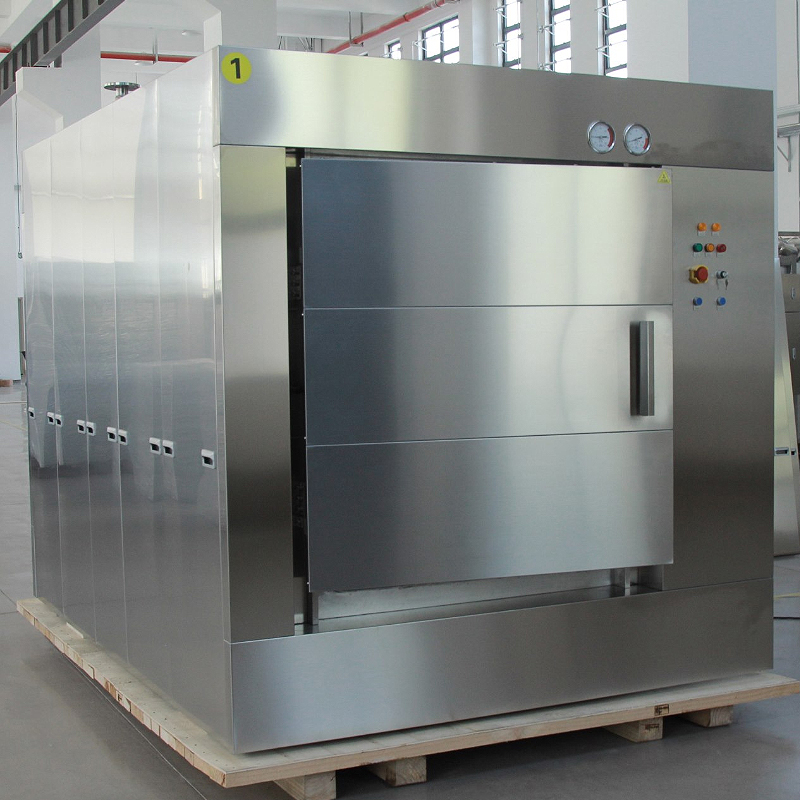

Horizontal Pressure Steam Sterilizer

General Details

AUTOCLAVE / STERILIZER

Horizontal Pressure Steam Sterilizer

The autoclave is the equipment which utilizes the pressure saturated steam for sterilizing goods quickly and reliable. It is a perfect equipment for sterilizing the medical equipment, dressings, glassware, liquor culture mediums, etc.

Product Models

  • 0.25m³ Horizontal Pressure Steam Sterilizer

  • 0.36m³ Horizontal Pressure Steam Sterilizer

  • 0.6m³ Horizontal Pressure Steam Sterilizer

  • 0.8m³ Horizontal Pressure Steam Sterilizer

  • 1m³ Horizontal Pressure Steam Sterilizer

  • 1.2m³ Horizontal Pressure Steam Sterilizer




Product Detail

Product Description
AISI316L/304 (material proof can be provided) is used in the inner chamber, jacket and indoor pipeline of the sterilizer to ensure the reliable quality and durability of the main body of the sterilizer;
The main body is manufactured using advanced welding technology and testing means. The inner surface: electrolytic polishing, pipeline electrolytic polishing, which meets the process requirements of food grade;

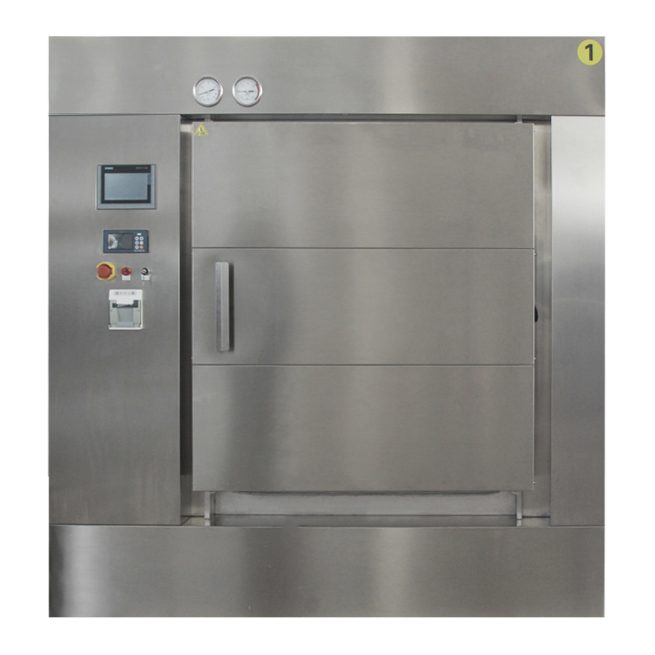

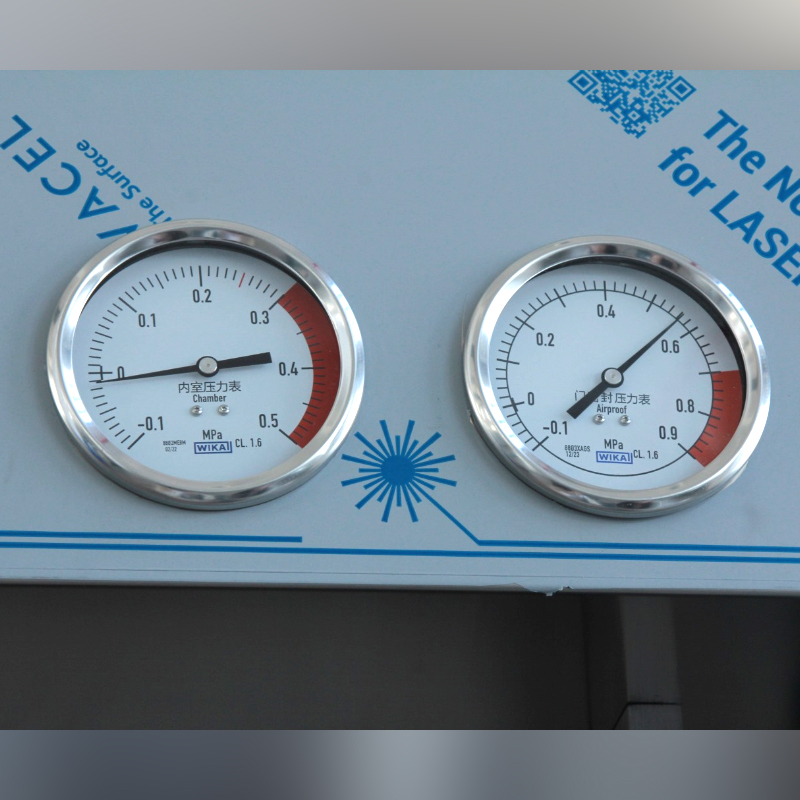

The whole sterilization process is automatically controlled by microcomputer, which has a high degree of automation. The color touch screen can dynamically display the working temperature, pressure, time and sterilization stage Parameter, operation is more intuitive and convenient;
The equipment is equipped with multiple sterilization procedures (solid, liquid, metal, fabric, B-D test, etc.), and the working parameters can be set according to the actual situation of the user; meanwhile vacuum detection, vacuum leakage rate is less than 0.13Kpa/min;
Multi-channel steam intake, multi-stage heating, more uniform temperature distribution, lower steam
energy consumption;
Four-sided V-shaped cavity base design, excellent drainage performance.

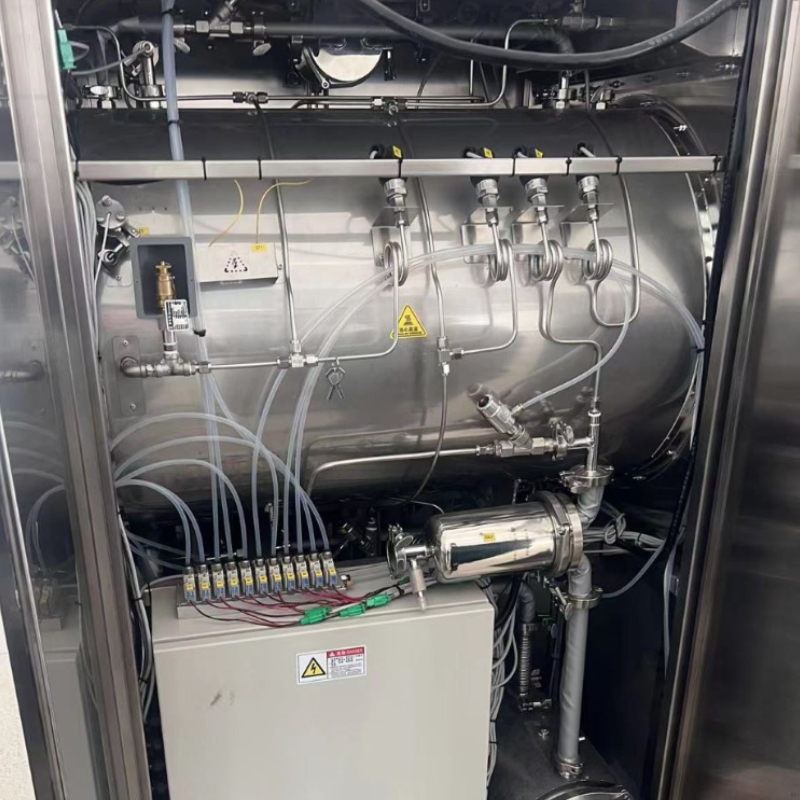

Notes: Self-produced steam sterilizer with steam generator and water pump, the device has the following functions:
The function of automatic water intake and replenishment of the water pump makes the water level in the steam generator controlled within a reasonable range.
When the water level in the steam generator reaches the lowest value, the power supply of the electric heat pipe can be cut offff and the alarm will be given;
The pressure controller is used to control the pressure in the steam generator, and the safety valve is used to protect the overpressure.




Packaging & Shipping

Packaging Details
1.Standard exporting package.
2.Cartons packaged with wooden pallet.
3.As so customized specifications such as logo or others.
Delivery Time
20 days

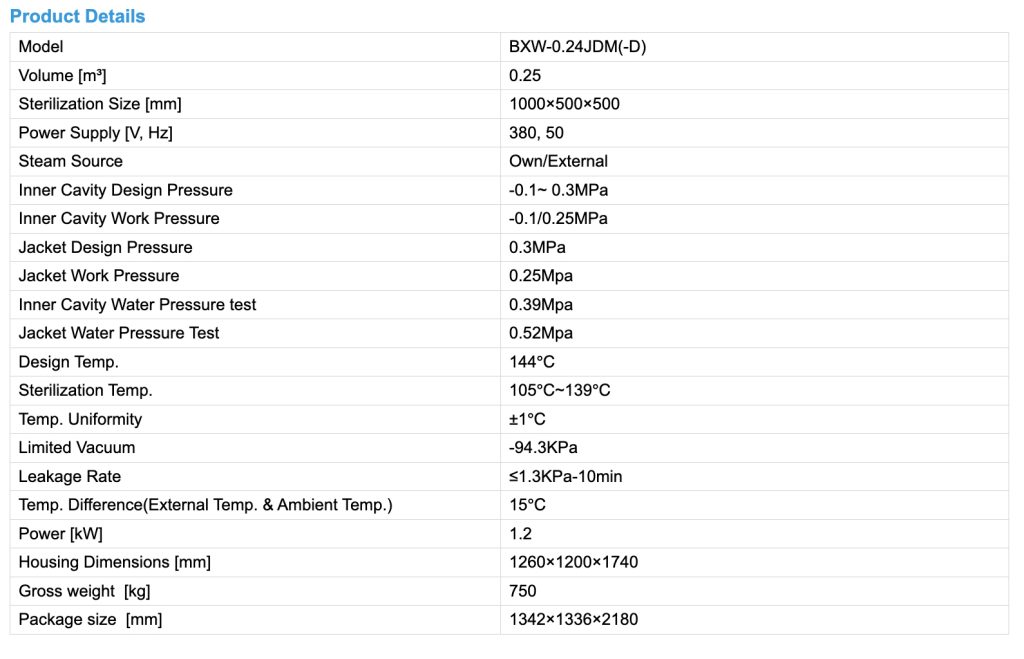

Techical Info
